Understanding ASL Physics

Arterial Spin Labeling (ASL) is a non-contrast MRI technique for measuring cerebral blood flow. This page covers the underlying physics.

The Core Idea

ASL uses the body's own blood water as an endogenous tracer. By magnetically "labeling" arterial blood before it enters the brain, we create a measurable perfusion signal without injecting any contrast agent.

The Labeling Process

Magnetic Labeling

Blood water has a magnetic moment (like a tiny compass). ASL manipulates this:

  1. Equilibrium: Blood protons align with the magnetic field (M₀)
  2. Labeling: RF pulses flip the magnetization (inversion or saturation)
  3. Flow: Labeled blood flows into the imaging region
  4. Readout: Measure the difference between labeled and unlabeled images

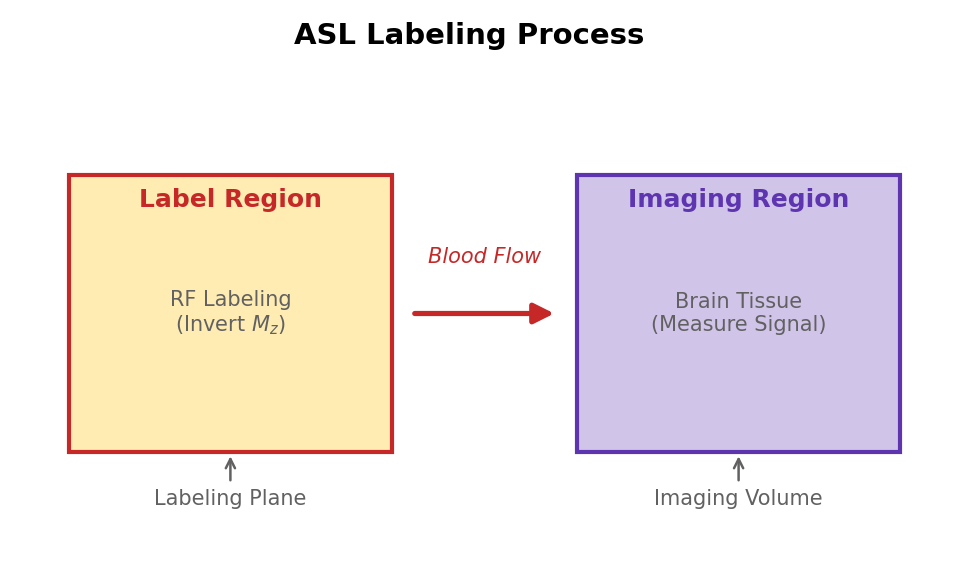

ASL labeling process: RF labeling inverts blood magnetization before it flows into the imaging region.

Label vs Control

We acquire two types of images:

  • Control: No labeling (or symmetric "sham" labeling)
  • Label: Blood is inverted/saturated

The difference signal (ΔM = Control - Label) is proportional to perfusion.

Labeling Schemes

PASL (Pulsed ASL)

Labels a "slab" of blood with a single RF pulse:

  • Advantages: High labeling efficiency (~95-98%)
  • Disadvantages: Sensitive to transit time, variable labeled volume
  • Key parameter: TI₁ (inversion time)

CASL (Continuous ASL)

Continuously labels blood at a specific plane:

  • Advantages: Larger labeled volume
  • Disadvantages: SAR concerns, magnetization transfer effects
  • Key parameters: τ (labeling duration), PLD

pCASL (Pseudo-Continuous ASL)

Combines benefits of PASL and CASL using train of RF pulses:

  • Advantages: High labeling efficiency (~80-90%), lower SAR
  • Most widely used in clinical and research settings
  • Key parameters: τ (labeling duration), PLD (post-labeling delay)

The General Kinetic Model

Single-PLD Equation

For pCASL, CBF is calculated as:

\[ CBF = \frac{6000 \cdot \lambda \cdot \Delta M \cdot e^{PLD/T_{1b}}}{2 \cdot \alpha \cdot T_{1b} \cdot M_0 \cdot (1 - e^{-\tau/T_{1b}})} \]

Where:

Symbol Description Typical Value
CBF Cerebral blood flow mL/100g/min
λ Blood-brain partition coefficient 0.9 ml/g
ΔM Perfusion-weighted signal a.u.
PLD Post-labeling delay 1.5-2.0 s
T₁b T1 of blood 1.65 s (3T)
α Labeling efficiency 0.85 (pCASL)
τ Labeling duration 1.8 s
M₀ Equilibrium magnetization from calibration

Multi-PLD Model

With multiple PLDs, we can also estimate arterial transit time (ATT):

\[ \Delta M(PLD) = \begin{cases} 0 & \text{if } PLD < ATT \\ 2 \cdot M_0 \cdot CBF \cdot \alpha \cdot T_{1b} \cdot e^{-ATT/T_{1b}} \cdot (1-e^{-(PLD-ATT)/T_{1b}}) & \text{if } ATT < PLD < ATT+\tau \\ \text{(full equation)} & \text{if } PLD > ATT+\tau \end{cases} \]

This allows fitting both CBF and ATT from the PLD curve.

Key Parameters

Post-Labeling Delay (PLD)

The time between labeling and image acquisition:

  • Too short: Labeled blood hasn't arrived → underestimate CBF
  • Too long: Label has decayed → low SNR
  • Optimal: Matches arterial transit time (~1.5-2.0 s for brain)

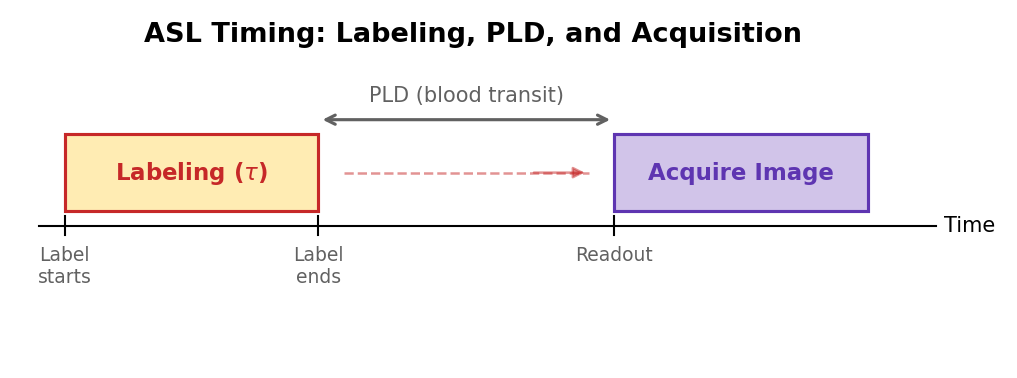

ASL timing: labeling duration, post-labeling delay, and image acquisition.

Labeling Duration (τ)

How long blood is labeled:

  • Longer τ: More labeled blood → higher signal
  • Trade-off: Magnetization transfer effects increase
  • Typical: 1.8 s for pCASL

Labeling Efficiency (α)

Fraction of blood that is actually inverted:

Method Efficiency
PASL 0.95-0.98
CASL 0.68-0.73
pCASL 0.80-0.90

Measured using: α = 1 - (M_label / M_control)

M₀ Calibration

Why M₀ is Needed

The perfusion signal ΔM must be normalized by M₀ for absolute quantification:

\[ CBF \propto \frac{\Delta M}{M_0} \]

M₀ Acquisition

Acquire a separate M₀ image with:

  • Long TR (> 5 s) for full relaxation
  • No labeling
  • Same coil and geometry as ASL

M₀ Corrections

M₀ may need corrections for:

  1. T1 recovery: If TR < 5×T1
  2. Coil sensitivity: Spatial B1 variations
  3. T2* decay: If TE is significant

Signal Model

Full Signal Equation

The measured ASL signal is:

\[ \Delta M = M_0 \cdot CBF \cdot \alpha \cdot T_{1b} \cdot e^{-\delta/T_{1b}} \cdot q(t) \]

Where q(t) is the delivery function depending on PLD and τ.

Signal-to-Noise Considerations

ASL has inherently low SNR because:

  • ΔM is typically 0.5-1.5% of M₀
  • Need multiple averages (20-60 pairs typical)

Ways to improve SNR:

  • Background suppression
  • 3D readout (whole-brain)
  • Multiple averages
  • Higher field strength (3T > 1.5T)

Physical Assumptions

Single-Compartment Model

Standard ASL assumes:

  1. Well-mixed single compartment: Instantaneous exchange between blood and tissue
  2. No venous outflow: All labeled blood remains in imaging volume
  3. Uniform ATT: All blood arrives at same time

These may be violated in:

  • Pathology (stroke, tumors)
  • White matter (longer ATT)
  • Large vessels

Blood-Brain Barrier

ASL measures flow of water, not contrast agent:

  • Water freely crosses BBB
  • No permeability limitation
  • But: exchange time affects signal

Practical Considerations

Background Suppression

Reduces static tissue signal for better ΔM detection:

Because T1(tissue) < T1(blood), carefully timed inversion pulses can null the static tissue signal while preserving the labeled blood signal, improving the quality of the control-label subtraction.

Motion Sensitivity

ASL is sensitive to motion because:

  • Small signal (ΔM ≈ 1% of M₀)
  • Subtraction amplifies motion artifacts

Solutions:

  • Background suppression
  • 3D acquisition
  • Motion correction algorithms

Partial Volume Effects

At voxel boundaries:

  • Gray matter: CBF ≈ 60 mL/100g/min
  • White matter: CBF ≈ 25 mL/100g/min
  • CSF: CBF = 0

Partial volume correction may be needed for accurate quantification.

CBF Values

Expected Ranges

Tissue CBF (mL/100g/min)
Gray matter 50-80
White matter 20-30
Whole brain average 40-60
Stroke (acute) ≈ 0
Tumor (enhancing) 50-150+

Interpretation

  • Low CBF: Ischemia, infarct, hypoperfusion
  • High CBF: Hyperperfusion, luxury perfusion, tumor
  • Asymmetry: Compare hemispheres

Advantages of ASL

  1. Non-invasive: No contrast injection
  2. Repeatable: Can acquire multiple times
  3. Quantitative: Absolute CBF in mL/100g/min
  4. Safe: No nephrotoxicity concerns
  5. Pediatric-friendly: No IV access needed

Limitations

  1. Low SNR: Requires multiple averages
  2. Sensitive to transit time: May miss delayed flow
  3. Coverage: Historically 2D, now 3D available
  4. No timing information: Unlike DSC (no MTT, Tmax)

References

  1. Alsop DC et al. "Recommended implementation of arterial spin-labeled perfusion MRI for clinical applications." Magn Reson Med 2015.

  2. Buxton RB et al. "A general kinetic model for quantitative perfusion imaging with arterial spin labeling." Magn Reson Med 1998.

  3. Dai W et al. "Continuous flow-driven inversion for arterial spin labeling using pulsed radio frequency and gradient fields." Magn Reson Med 2008.
